High-quality Botanical Extractor Machines

The needs for high-quality botanical extractor machines is growing rapidly.

Isolate Extraction Systems is an industry leader in the oil extraction market, and we manufacture some of the most innovative supercritical CO2 extraction equipment available. Our machines boast attractive benefits such as consistent uptime operation and industry-leading flow rates and are able to produce shelf-ready oils quickly to meet the growing demands of the retail market. We understand how important this process is, and focus our energy on equipping your business with the right tools to help you succeed. Learn more about each unit below.

Commercial Supercritical Co2 Extractors

Our smallest commercial supercritical CO2 extraction equipment systems are built for 5 liters with a flow rate of 8.2kg per minute, while our largest commercial systems can accommodate 20 liters with a flow rate of 4.2kg per minute. These options are best for small to mid-size operations producing oils directly for the retail market.

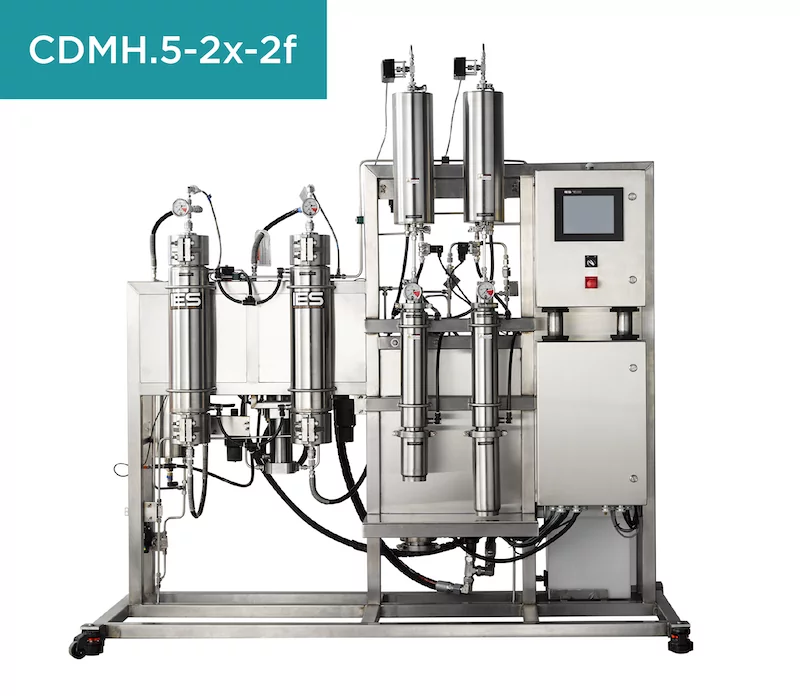

CDMH.5-2x-2f

Volume: 5 liters per extraction vessel [10 total liters]
Capacity: 1 – 4.4 lbs (0.45 – 2 kg)

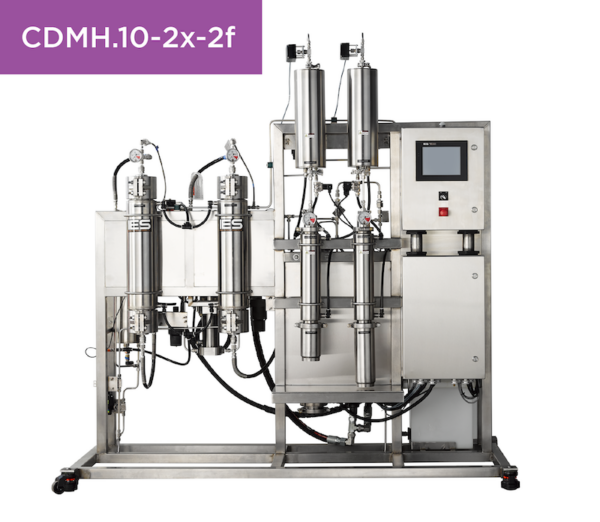

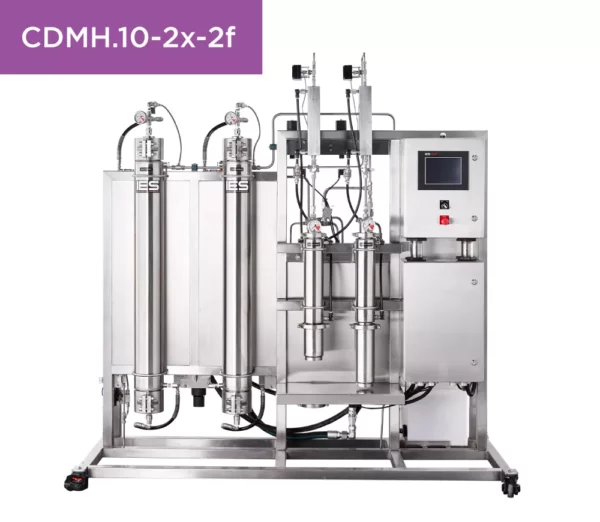

CDMH.10-2X-2F

Volume: 10L / extraction vessel [20L total]
Capacity: 2 – 8.8 lbs (0.9 – 4 kg) per

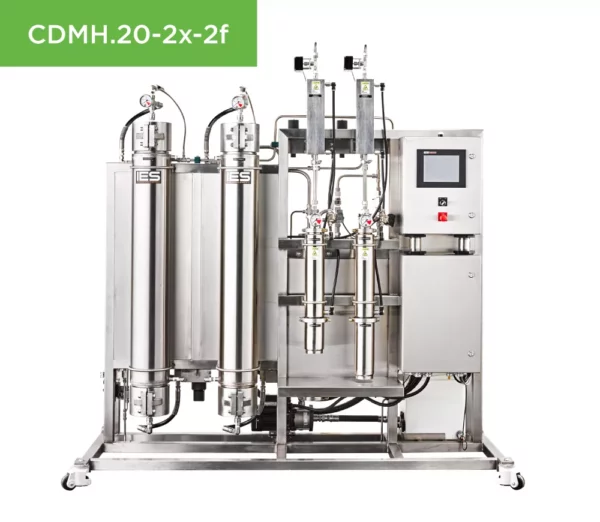

CMDH.20-2x-2f

Volume: 20 liters per extraction vessel [40 total liters]
Capacity: 4 – 17.6 lbs (1.8 – 8 kg)

Certifications

American Society of Mechanical Engineers (ASME) ASME is the leading international developer of codes and standards associated with mechanical engineering. Under ASME division 1 covers the mandatory requirements, specific prohibitions and nonmandatory guidance for materials, design, fabrication, inspection and testing, markings and reports, overpressure protection and certification of pressure vessels having an internal or external pressure which exceeds 15 psi (100 kPa) IES extractors meet all of the below ASME codes of construction and include the required ASME certifications. • ASME BPV Section VIII Div. 1 (Pressure Vessels) • ASME B31.3 (Piping)

Intertek Electrical Testing Labs (ETL / Underwriters Laboratory (UL) & Canadian Standards Association (CSA) The ETL Mark is proof of product compliance to North American safety standards. Authorities Having Jurisdiction (AHJs) and code officials across the US and Canada accept the ETL Listed Mark as proof of product compliance to published industry standards. UL and CSA bodies require extraction equipment to meet predetermined safety regulations as it relates to their electrical composition. All commercial IES machines are ETL listed and include supporting documentation for meeting this important standard.

National Sanitation Foundation (NSF) NSF International is an accredited, independent third-party certification body that tests and certifies products to verify they meet these public health and safety standards. IES has worked with NSF to validate effective extractor sterilization protocols that render the machine viable in the pharmaceutical industry for its level of sterilization.

Good Manufacturing Practice* (GMP) are a set of guidelines that provide guidance for manufacturing, testing, and quality assurance in order to ensure that a manufactured product is safe for human consumption or use. The guidelines provide minimum requirements to ensure products are consistent in quality, from batch to batch, offering repeatable, and traceable results. IES offers a GMP add-on package providing required documentation and technical writing to make our systems GMP compliant in your specific jurisdiction.

Pressure Safety Inspectors, LLC PSI provides state-level engineering peer review of solvent based extraction systems, that is, independent, third-party design verification of an entire piece of extraction equipment. Successfully reviewed systems are issued a model number and considered safe for use, including adherence to the following codes: • International Fire Code 2018, • NFPA 1 Fire Code, 2018 Edition • NFPA 55 Compressed Gases and Cryogenic Fluids Code, 2013 Edition • ASME Boiler and Pressure Vessel Code, Section VIII, 2017 • ASME B31.3 Process Piping, 2012 • Certified for use of extraction of botanicals in the following jurisdictions: (AZ, CA, CO, FL, HI, ID, KY, MA, MD, ME, MI, MN, NC, ND, NM, NV, NY, OH, OK, OR, PA, SC, TN, TX, VT, WA)

High-Quality CO2 Extraction Machines

There is a growing demand for extraction equipment that is both efficient and environmentally sustainable.

Isolate Extraction Systems is an industry leader in the CO2 extraction equipment market. We design and manufacture some of the most innovative supercritical CO2 extraction equipment available. With our machines, you can tailor your process to produce premium full-spectrum extract and terpenes, maximize throughput and daily yields, or focus on efficiency to get the most out of your process. We pride ourselves in equipping your business with the right tools to help you succeed. Learn more about each unit below.

Industrial Extraction Systems

These industrial-scale closed-loop supercritical CO2 extraction systems are designed to provide bulk throughput capabilities and are perfect for a pilot plant to full production facilities. With three different configurations to choose from we have a system for your application that is sure to be an effective, reliable, and safe tool for your business.

Commercial Extraction Systems

Our commercial series closed-loop supercritical CO2 extraction systems are ideal for research and development and small-scale processing applications. They are available in three different configurations to match the needs of your application and provide users with an effective, reliable, and safe tool for extraction.

Industrial Botanical Extractor Machines

For industrial uses, we have botanical extractor machines capable of 50 liters with a flow rate of 8.2kg per minute all the way up to a 200 liter system with a flow rate of 42.2kg per minute. Companies that produce large quantities of oils for distribution or large-scale production can utilize this equipment to meet their needs.

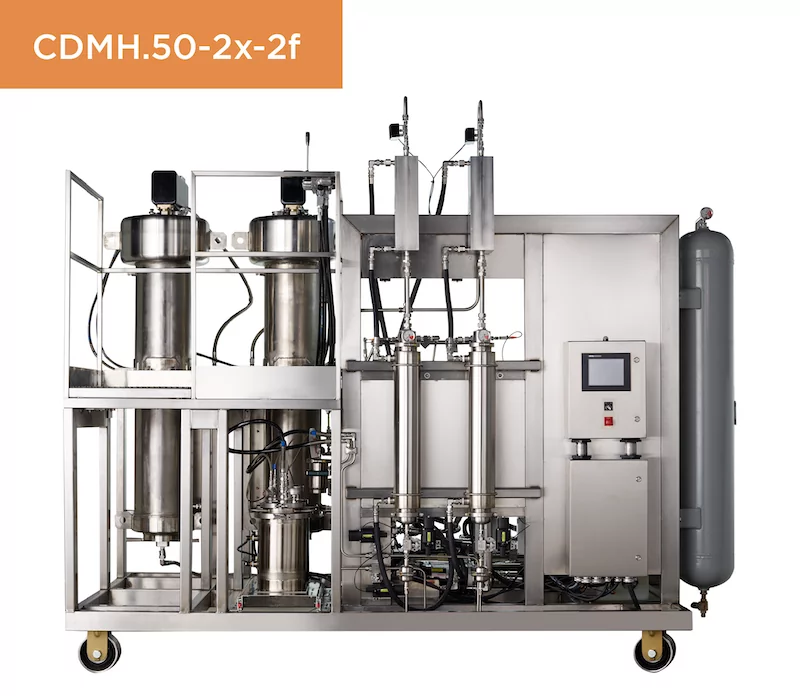

CMDH.50-2x-2f

Volume: 50 liters per extraction vessel [100 total liters]
Capacity: 10 – 44 lbs (4.5 – 20 kg)

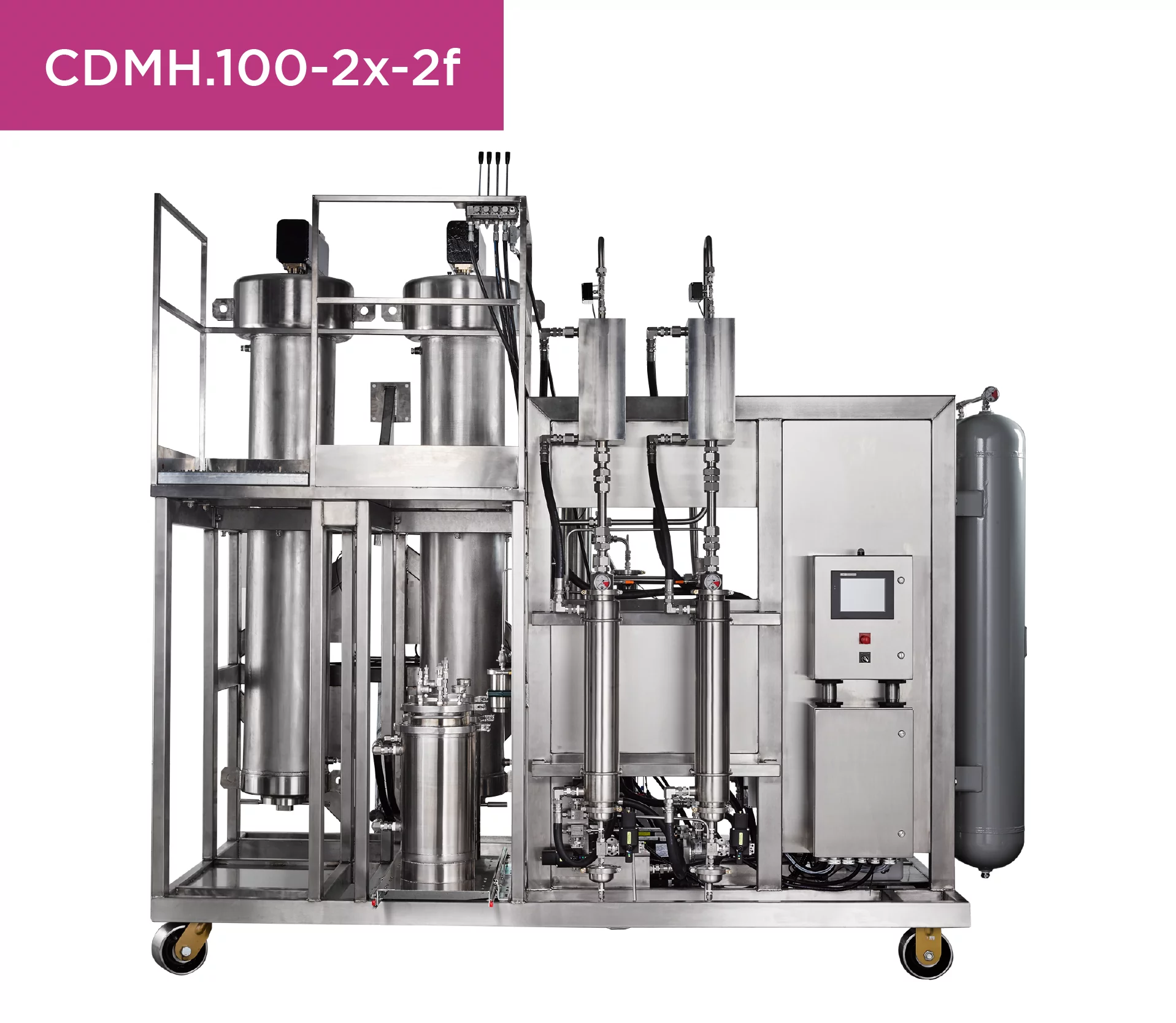

CDMH.100-2x-2f

Volume: 100 L / extraction vessel [200L total]
Capacity: 20 – 88 lbs (9 – 40 kg) per

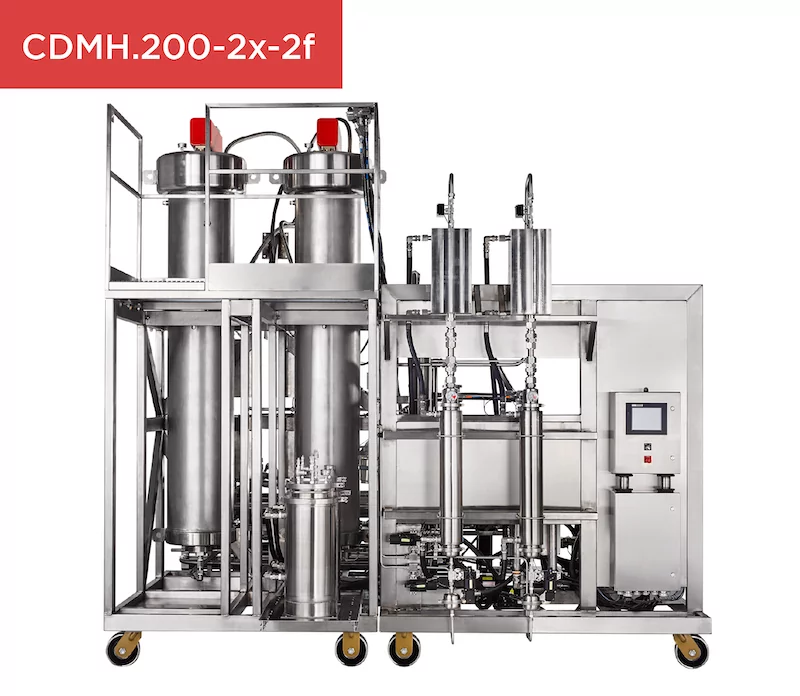

CDMH.200-2x-2f

Volume: 200 liters per extraction vessel [400 total liters]
Capacity: 40 – 176 lbs (18 – 80 kg)
